TLDR;
This video provides a comprehensive guide on the Schumacher SE 4020 battery charger, detailing its functionalities and usage for charging motorcycle and car batteries. Key points include:
- The charger has settings for different amperages (240, 10, and 2 amps) and a timer.
- Proper connections and adjustments are essential based on the number of batteries being charged to avoid overheating and ensure efficient charging.
Charger Overview and Specifications [0:00]

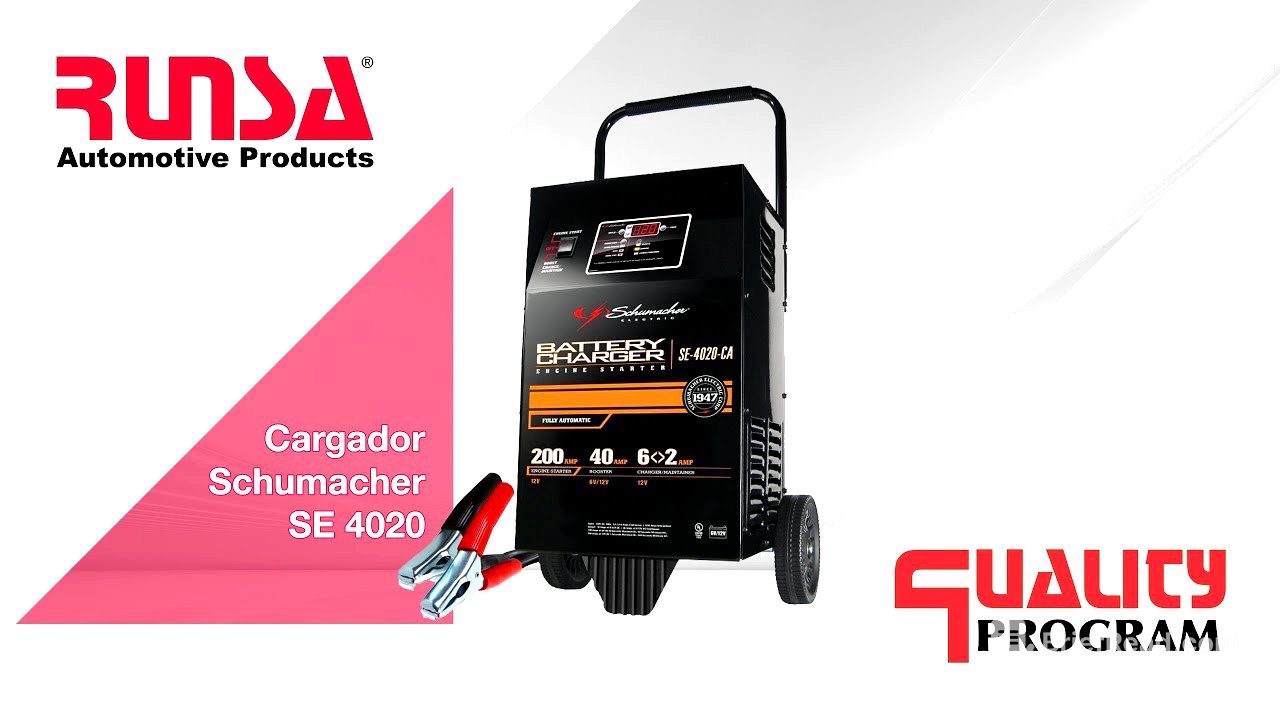

The video starts with an introduction to the Schumacher SE 4020 battery charger, which offers three charging ranges: 240, 10, and 2 amps. It needs to be connected to a 127-volt AC power source for use. The charger includes two selectable switches - one for choosing the current intensity and another for setting the required charging time.
Testing Battery Charging [0:41]
The host demonstrates charging motorcycle batteries using the charger, highlighting the positive and negative terminal connections. For charging one or two batteries, the current is set to 2 amps, and the batteries are connected in parallel (positive with positive and negative with negative).
Adjusting Settings for Multiple Batteries [1:28]
When charging two batteries, the charger is set to 2 amps and the timer is adjusted to 135 minutes. It is noted that different battery types, like the CTX30 LBS, may require a longer charge time of 8 to 15 hours, so the charger should be put in "Hold" mode for continuous charging based on battery needs.
Handling More Batteries [2:26]
For larger numbers of batteries, such as five, they are also connected in parallel, but the current setting is increased to 10 amps. If charging ten batteries, the current range would need to be set to 40 amps for effective charging.
Understanding Current and Voltage Ranges [3:17]
The charger includes two power ranges: one for 12 volts at 200 amps (used for starting a non-functional car) and another for 6 volts at 40 to 100 amps (for older car models). For both setups, the positive terminal connects to the battery while the negative connects either to the vehicle's chassis or the battery.
Using an Amp Meter [3:38]
An ammeter is presented to monitor the charging current. While charging, the meter indicates the current level in the batteries. The charger can simultaneously charge up to ten motorcycle batteries for sufficient output.
Charging Car Batteries [4:11]
For 12-volt car batteries, the positive and negative terminals are connected similarly, and the charger is set on 2 amps for optimal charging, which may take between 2 to 10 hours, depending on the battery condition.
Charging Multiple Batteries Safely [4:35]
Using the 10-amp setting allows the charging of up to three batteries in parallel, while the 40-amp setting permits charging five batteries completely. It is emphasized to avoid exceeding these limits to prevent overheating of the power cables and ensure safe operation.
